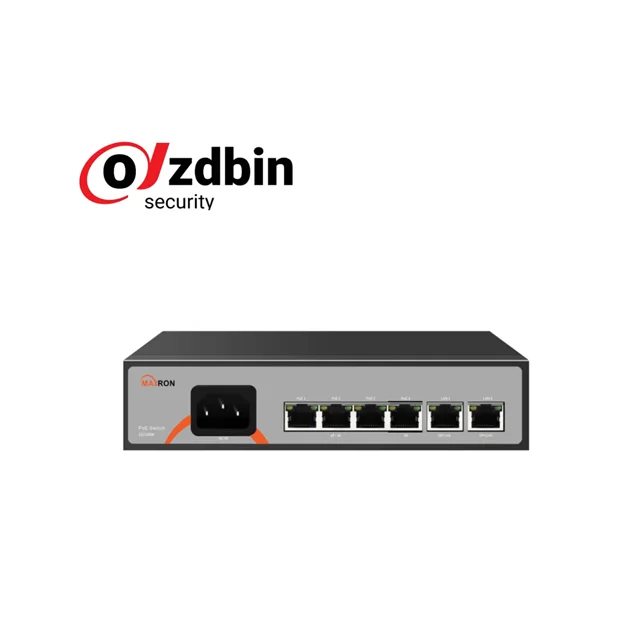

4X10/100Mbps PoE Ports (RJ45)
2X10/100Mbps Uplink Port (RJ45)
Transmission Rate
200Mbps Full Duplex;
10 or 100 Mbps Half Duplex
Transmission Distance
100Mbps /10Mbps Adaptive MAX 250m
Performance Specification
Bandwidth: 1.2Gbps
Network Latency (10 to 100Mbps):≦16μs (use the 64byte package size)
MAC address table: 2K
:The Frame Filter & Transmission Rate
14800pps the most for 10M port,
148800pps the most for 100M port
Networking Standard
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3xFlow Control
IEEE 802.3af/at/bt Power over Ethernet
Power Support
Power Input: AC 90~240V Total≤65W
AI Watchdog: Port 1~4
Power Output:
PoE1~3Port:1/2(+52V),3/6(GND)≤30W
PoE 4 Port:1245(+53V),3678(GND)
Compatible1/2(+52V),3/6(GND)≤60W
Protection Level
Lightning Protection:6KV, Per: IEC61000-4-5
ESD Protection:8KV, Per: IEC61000-4-2
Physical Specifications
Size(L*W*H):187mm*139mm*43mm
Working Environment
℃Operating Temperature: -30℃~60
℃Storage Temperature: -40℃~70
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
CE Mark
FCC Part15, Class B
RoHS 2.0
Warranty
Whole Device: 1 year
Package Content
AC Cable, Installation Manual
